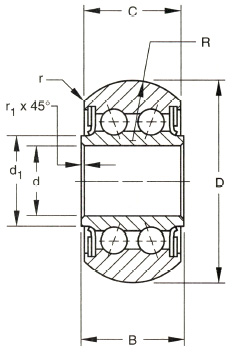

Bearing Number |
Bore |
Outside Diameter |
Widths |
|||||
d |
D |
B |
C |
|||||
+0.0000,-.0005 +0.000,-.013 |
+0.000,-0.005 +0.000,-.013 |
+0.000,-.005 +0.00,-.13 |
||||||
in. |
mm |
In. |
mm |
in. |
mm |
in. |
mm |
|
D7R6-2 |
0.4375 |
11.112 |
1.25 |
31.75 |
0.625 |
15.88 |
0.60 |
15.24 |
1.24 |
31.50 |
0.59 |
14.99 |
|||||
Bearing Number |
d 1 |
r 1 |
r |
R |
Max. Safe Working Load Radial (1) |
Wt. |
||||||
| Approx. |
+.015,-.000 +.38,-.00 |
(REF) |
Approx. |
|||||||||
in. |
mm |
in. |
mm |
in. |
mm |
in. |
mm |
lbs |
N |
lbs. |
kg |
|
D7R6-2 |
0.566 |
14.38 |
0.005 (2) |
0.13 (2) |
0.05 |
1.27 |
0.375 |
9.52 |
2000 |
8800 |
0.16 |
0.073 |
0.365 |
9.27 |
|||||||||||
(1) The maximum safe working load is that radial load to obtain 100,00 feet (30,500m) peripheral travel life.
(2) +.010" (+.25mm) -.000"(-.00mm).
(3) Centerline of Radius located .090" (2.29mm) to .120" (3.05mm) from faces of outer ring.
(4) Centerline of Radius located .100" (2.54mm) to .120" (3.05mm) from faces of outer ring.* Check for availability
