Control Bearings
G Series
MS27647 - MIL-B-7949

  • Single and double row.
  • Equipped with Buna N rubber seals or stainless steel shields asindicated below.
  • Exposed surfaces except bore, cap, and seals are cadmium plated.
  • Prepacked with lubricant.

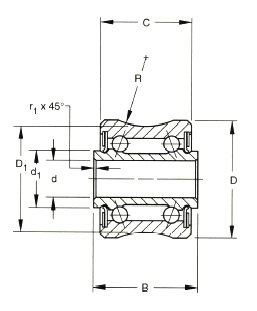

G Series
Bearing
Number
Bore
Outside Diameter
Widths
d
D
B
C
+0.000-.010
+0.00 -.25
+0.000 -.005
+0.00-.13
+0.000 -.005
+0.00-.13
in.
mm
in.
mm
in.
mm
in.
mm
*GD5M28
0.3125
7.938
1.015

25.78

0.9375
23.81
0.812
20.62
0.3120
7.925


Bearing
Number
d 1
r 1
D 1
R
Max. Safe
Working
Load
Radial(1)
Wt.
Approx.
+0.015-.000
+0.38 -.00
Approx.
in.
mm
in.
mm
in.
mm
in.
mm
lbs.
N
lbs.
kg
*GD5M28
0.472
11.99
0.005
0.13
0.901
22.89
0.895
22.73
600
2650
0.1
0.045

0.900
22.86
0.905
22.99


(1) The maximum safe working load is that radial load to obtain 100,000 feet (30,500 M) peripheral travel life.

* Check for availability
