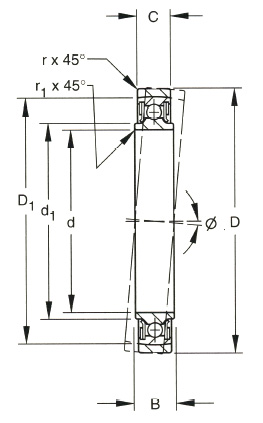

kP-BS Series Self-Aligning Torque Tube Type

Control Bearings
KP-BS Series
Self-Aligning Torque Tube Type
MS27648. MIL-B-7949

Single row, ball, external self aligning.
Equipped with Teflon seals.
Exposed surfaces except bore, cap, and seals are cadmium plated.
Prelubricated. (See Table 1, page 111 for options.
Series is internally identical to the KP-B series. Self-alignment is
provided by an external self-aligning ring whose internal
sphericallyground surface is accurately matched to the external sphericallyground surface of the outer ring. These bearings are designed to compensate for initial misalignment.

kP-BS Series Self-Aligning Torque Tube Type

Brg. No.	MS 27648 Dash No.	Bore		Outside Diameter		Widths				d 1
		d		D		B		C		Approx.
		+0.0000,-.0010 +0.000,-025		+0.0000,-.0010 +0.000,-.025		+0.0000,-.005 +0.000,-.13		+0.000,-.005 +0.00,-.13		Approx.
		in.	mm	in.	mm	in.	mm	in.	mm	in.	mm
KP16BS	-16	1.0000 (1)	25.400 (1)	1.9375	49.212	0.437	11.1	0.375	9.52	1.184	30.70
KP21BS	-21	1.3130	33.350	2.2500	57.150	0.437	11.1	0.375	9.52	1.478	37.54
KP23BS	-23	1.4380	36.525	2.3750	60.325	0.437	11.1	0.375	9.52	1.605	40.77
KP25BS	-25	1.5630	39.700	2.5000	63.500	0.437	11.1	0.375	9.52	1.720	43.69
KP29BS	-29	1.8130	46.050	2.7500	69.850	0.437	11.1	0.375	9.52	1.960	49.78
KP33BS	-33	2.0630	52.400	3.0000	76.200	0.437	11.1	0.375	9.52	2.262	57.45
KP37BS	-37	2.3130	58.750	3.2500	82.550	0.437	11.1	0.375	9.52	2.500	63.50
KP47BS	-47	2.9380	74.625	4.1250	104.775	0.531	13.5	0.469	11.91	3.120	79.25
*KP48BS	-48	3.0000	76.200	4.2500	107.950	0.531	13.5	0.469	11.91	3.255	82.68
KP49BS	-49	3.0625	77.788	4.2500	107.950	0.531	13.5	0.469	11.91	3.255	82.68

Brg. No.	r 1		r		D 1		Mis alignment Either Direction	Wt.		Radial Limit Load Rating		Thrust Limit Load Rating
Brg. No.	+0.015,-.000 +0.38,-.00		+0.015,-.000 +0.38,-.00		To Sharp Corner (Ref.)		Mis alignment Either Direction	Approx.		Radial Limit Load Rating		Thrust Limit Load Rating
	in.	mm	in.	mm	in.	mm		lbs.	kg	lbs.	N	lbs.	N
KP16BS	0.024	0.61	0.024	0.61	1.709	43.41	7°25 '	0.18	0.082	8090	36000	1600	7100
KP21BS	0.024	0.61	0.024	0.61	2.028	51.51	6°30'	0.20	0.091	9840	43000	2000	9000
KP23BS	0.024	0.61	0.024	0.61	2.155	54.74	6°	0.22	0.100	10500	46500	2200	9800
KP25BS	0.024	0.61	0.024	0.61	2.282	57.96	5°45'	0.25	0.113	11300	50000	2300	10200
KP29BS	0.024	0.61	0.024	0.61	2.535	64.39	5°	0.27	0.122	12700	56000	2600	11600
KP33BS	0.024	0.61	0.024	0.61	2.787	70.79	50	0.30	0.136	14400	64000	2900	12900
KP37BS	0.024	0.61	0.024	0.61	3.039	77.19	4°30'	0.33	0.150	15800	71000	3200	14300
KP47BS	0.039	0.99	0.039	0.99	3.846	97.69	4°30'	0.64	0.290	24700	100000	5000	22400
*KP48BS	0.039	0.99	0.039	0.99	3.972	100.89	4°	0.69	0.313	27500	122000	5500	24500
KP49BS	0.039	0.99	0.039	0.99	3.972	100.89	4°	0.69	0.313	27500	122000	5500	24500

(1) +.0000" (.000mm), -.0005" (.013mm)
Note: These bearings should not be used as track rollers, cam follower rolls, and the like.

* Check for availability
