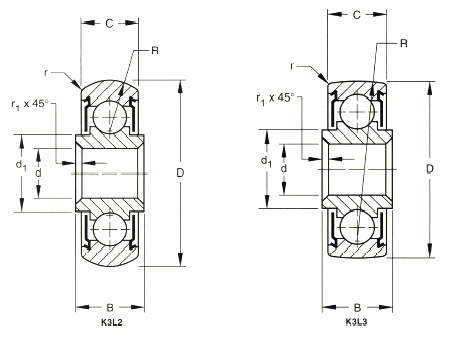

Bearing
Number
|
Bore |
Outside Diameter |
Widths |
|||||
d |
D |
B |
C |
|||||
+0.0000,-.0005 +0.000,-.013 |
+0.000,-0.005 +0.00,-.013 |
+0.000,-.005 +0.00,-.13 |
||||||
in. |
mm |
in. |
mm |
in. |
mm |
in. |
mm |
|
*K3L2 (2) |
0.1900 |
4.826 |
0.687 |
17.45 |
0.245 |
6.22 |
0.203 |
5.16 |
0.685 |
17.40 |
|||||||
*K3L3 (2) |
0.1900 |
4.826 |
0.635 |
16.13 |
0.245 |
6.22 |
0.203 |
5.16 |
0.632 |
16.05 |
|||||||
| Bearing
Number
|
d 1 |
r 1 |
r |
R |
Max. Safe Working Load Radial (1) |
Wt. |
||||||
Approx. |
+.015,-.000 +.38,-.00 |
(REF) |
Approx. |
|||||||||
in, |
mm |
in. |
mm |
in. |
mm |
in. |
mm |
lbs |
N |
lbs. |
kg |
|
*K3L2 (2) |
0.275 |
6.98 |
0.005 |
0.13 |
0.02 |
0.51 |
0.187 |
4.75 |
200 |
880 |
0.01 |
0.005 |
0.182 |
4.62 |
|||||||||||
*K3L3 (2) |
0.275 |
6.98 |
0.005 |
0.13 |
0.02 |
0.51 |
0.55 |
13.97 |
200 |
880 |
0.01 |
0.005 |
0.50 |
12.70 |
|||||||||||
(1) The maximum safe working load is that radial load to obtain 100,000 feet (30,500m) peripheral travel life.
(2) Factory Specification (FS) not required. Prepacked with lubricant conforming to MIL-G-23827. Equipped with stainless steel shields.* Check for availability
