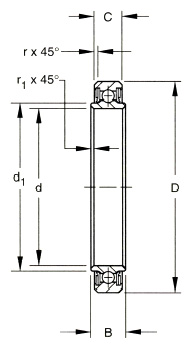

Bearing Number |
MS 27641 Dash No. |
Bore |
Outside Diameter |
Widths |
|||||
d |
D |
B |
C |
||||||
+0.0000,-.0005 +0.000,-.013 |
+0.0000,-.0010 +0.000,-.025 |
+0.0000,-0.0025 +0.000,-.064 |
+0.000,-.005 +0.00,-.13 |
||||||
in. |
mm |
in. |
mm |
in. |
mm |
in. |
mm |
||
MKP16B |
-16S |
1.0000 |
25.400 |
1.7500 (1) |
44.450 (1) |
0.437 |
1.10 |
0.375 |
9.52 |
MKP21B |
-21S |
1.3125 |
33.338 |
2.0625 |
52.388 |
0.437 |
1.10 |
0.375 |
9.52 |
MKP23B |
-23S |
1.4375 |
36.512 |
2.1875 |
55.562 |
0.437 |
1.10 |
0.375 |
9.52 |
MKP25B |
-25S |
1.5625 |
39.688 |
2.3125 |
58.738 |
0.437 |
1.10 |
0.375 |
9.52 |
MKP29B |
-29S |
1.8125 |
46.038 |
2.5625 |
65.088 |
0.437 |
1.10 |
0.375 |
9.52 |
MKP33B |
-33S |
2.0625 |
52.388 |
2.8125 |
71.438 |
0.437 |
1.10 |
0.375 |
9.52 |
MKP37B |
-37S |
2.3125 |
58.738 |
3.0625 |
77.788 |
0.437 |
1.10 |
0.375 |
9.52 |
MKP47B |
-47S |
2.9375 |
74.612 |
3.8750 |
98.425 |
0.531 |
3.49 |
0.469 |
11.91 |
MKP49B |
-49S |
3.0625 |
77.788 |
4.0000 |
101.600 |
0.531 |
3.49 |
0.469 |
11.91 |
Bearing Number |
d 1 |
r 1 |
r |
Wt. |
Radial Limit Load Rating |
Thrust Limit Load Rating |
||||||
| Approx. |
+0.015,-.000 +0.38,-.00 |
+0.015,-.000 +0.38,-.00 |
Approx. |
|||||||||
in. |
mm |
in. |
mm |
in. |
mm |
lbs. |
kg |
lbs. |
N |
lbs. |
N |
|
MKP16B |
1.184 |
30.07 |
0.024 |
0.61 |
0.024 |
0.61 |
0.14 |
0.064 |
8090 |
36000 |
3600 |
16000 |
MKP21B |
1.478 |
37.54 |
0.024 |
0.61 |
0.024 |
0.61 |
0.16 |
0.073 |
9840 |
43000 |
4400 |
19600 |
MKP23B |
1.605 |
40.77 |
0.024 |
0.61 |
0.024 |
0.61 |
0.17 |
0.077 |
10500 |
46500 |
4700 |
20800 |
MKP25B |
1.720 |
43.69 |
0.024 |
0.61 |
0.024 |
0.61 |
0.19 |
0.086 |
11300 |
50000 |
5000 |
22400 |
MKP29B |
1.960 |
49.78 |
0.024 |
0.61 |
0.024 |
0.61 |
0.21 |
0.095 |
12700 |
56000 |
5600 |
25000 |
MKP33B |
2.262 |
57.45 |
0.024 |
0.61 |
0.024 |
0.61 |
0.23 |
0.104 |
14400 |
64000 |
6400 |
28500 |
MKP37B |
2.500 |
63.50 |
0.024 |
0.61 |
0.024 |
0.61 |
0.26 |
0.118 |
15800 |
71000 |
7000 |
31000 |
MKP47B |
3.120 |
79.25 |
0.039 |
0.99 |
0.039 |
0.99 |
0.49 |
0.222 |
24700 |
100000 |
10900 |
48000 |
MKP49B |
3.255 |
82.68 |
0.039 |
0.99 |
0.039 |
0.99 |
0.53 |
0.240 |
27500 |
122000 |
12100 |
54000 |
(1) +.0000" (+.000mm), -.0005" (-.013mm).
Note: These bearings should not be used as track rollers, cam follower rolls, and the like.
