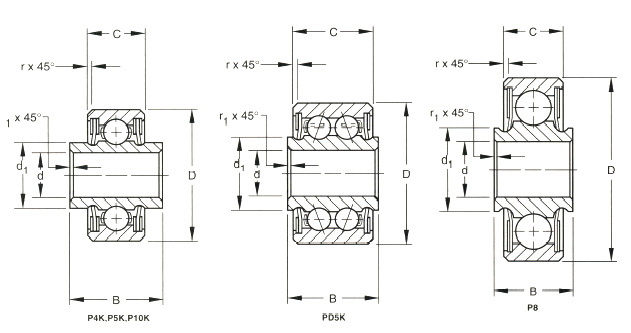

Bearing Number |
Bore |
Outside Diameter |
Widths |
|||||
d |
D |
B |
C |
|||||
+0.0000,-.0005 +0.000,-.013 |
+0.0000,-.0005 +0.000,-.013 |
+0.000,-0.005 +0.00,-.13 |
+0.000,-.005 +0.00,-.13 |
|||||
in. |
mm |
in. |
mm |
in. |
mm |
in. |
mm |
|
P4K |
0.2500 |
6.350 |
0.8750 |
22.225 |
0.438 |
11.13 |
0.375 |
9.52 |
P5K |
0.3125 |
7.938 |
0.8750 |
22.225 |
0.625 |
15.88 |
0.375 |
9.52 |
PD5K |
0.3125 |
7.938 |
0.9375 |
23.812 |
0.625 |
15.88 |
0.563 |
14.30 |
P8 (1) |
0.5000 |
12.700 |
1.6875 |
42.862 |
0.750 |
19.05 |
0.563 |
14.30 |
P10K |
0.6250 |
15.875 |
1.1875 |
30.162 |
0.438 |
11.13 |
0.375 |
9.52 |
| Bearing
Number
|
d 1 |
r 1 |
r |
Wt. |
Radial Limit Load Rating |
Thrust Limit Load Rating |
||||||
Approx. |
+.015,-.000 +.38,-.00 |
+.015,-.000 +.38,-.00 |
Approx. |
|||||||||
in. |
mm |
in. |
mm |
in. |
mm |
lbs. |
kg |
lbs. |
N |
lbs. |
N |
|
P4K |
0.423 |
10.74 |
0.005 |
0.13 |
0.022 |
0.56 |
0.04 |
0.018 |
1710 |
7650 |
800 |
3550 |
P5K |
0.455 |
11.56 |
0.005 |
0.13 |
0.022 |
0.56 |
0.04 |
0.018 |
1710 |
7650 |
800 |
3550 |
PD5K |
0.455 |
11.56 |
0.005 |
0.13 |
0.022 |
0.56 |
0.07 |
0.032 |
3420 |
15300 |
1030 |
4550 |
P8 (1)
|
0.768 |
19.51 |
0.005 |
0.13 |
0.032 |
0.81 |
0.24 |
0.109 |
11800 |
52000 |
5200 |
23200 |
P10K |
0.769 |
19.53 |
0.005 |
0.13 |
0.022 |
0.56 |
0.06 |
0.027 |
2440 |
10800 |
1100 |
4900 |
(1) Full type - No retainer.
Note: Although the P Series bearings are designed for use in pulleys, they are well suited for use in other airframe applications. However these bearings should not be used as track rollers, cam follower rolls, and the like.
* Check for availability
|
 |

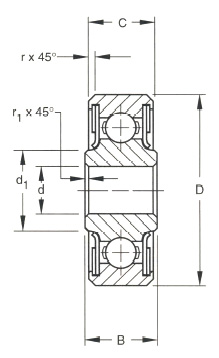

Bearing Number |
Bore |
Outside Diameter |
Widths |
|||||
d |
D |
B |
C |
|||||
+0.0000,-.0005 +0.000,-.013 |
+0.0000,-.0005 +0.000,-.013 |
+0.000,-0.005 +0.00,-.13 |
+0.000,-.005 +0.00,-.13 |
|||||
in. |
mm |
in. |
mm |
in. |
Mm |
In. |
mm |
|
*KP3K |
0.1900 |
4.826 |
0.7774 |
19.746 |
0.297 |
7.54 |
0.270 |
6.86 |
*KP3AK |
0.1900 |
4.826 |
0.6250 |
15.875 |
0.297 |
7.54 |
0.234 |
5.94 |
*KP3AK-2 (1) |
0.1900 |
4.826 |
0.6250 |
15.875 |
0.625 |
15.88 |
0.234 |
5.94 |
*W4AK |
0.2500 |
6.350 |
0.7500 |
19.050 |
0.438 |
11.13 |
0.312 |
7.92 |
*KP4K |
0.2500 |
6.350 |
0.9014 |
22.896 |
0.484 |
12.29 |
0.335 |
8.51 |
| Bearing
Number
|
d 1 |
r 1 |
r |
Wt. |
Radial Limit Load Rating |
Thrust Limit Load Rating |
||||||
| +.015,-.000 +.38,-.00 |
+.015,-.000 +.38,-.00 |
Approx. |
||||||||||
Approx. |
||||||||||||
in. |
mm |
in. |
mm |
in. |
mm |
lbs. |
kg |
lbs. |
N |
lbs. |
N |
|
*KP3K |
0.332 |
8.43 |
0.005 |
0.13 |
0.024 |
0.61 |
0.02 |
0.009 |
1090 |
4800 |
600 |
2650 |
*KP3AK |
0.297 |
7.54 |
0.005 |
0.13 |
0.016 |
0.41 |
0.01 |
0.005 |
705 |
3150 |
385 |
1700 |
*KP3AK-2 (1) |
0.297 |
7.54 |
0.005 |
0.13 |
0.016 |
0.41 |
0.02 |
0.009 |
705 |
3150 |
385 |
1700 |
*W4AK |
0.372 |
9.45 |
0.005 |
0.13 |
0.016 |
0.41 |
0.03 |
0.014 |
1090 |
4800 |
600 |
2650 |
*KP4K |
0.390 |
9.91 |
0.005 |
0.13 |
0.034 |
0.86 |
0.04 |
0.018 |
1710 |
7650 |
800 |
3550 |
(1) Not used in MIL-P-7034 Pulleys.
* Check for availability
